EXTRUDED FINNED TUBE
FINNED TUBES

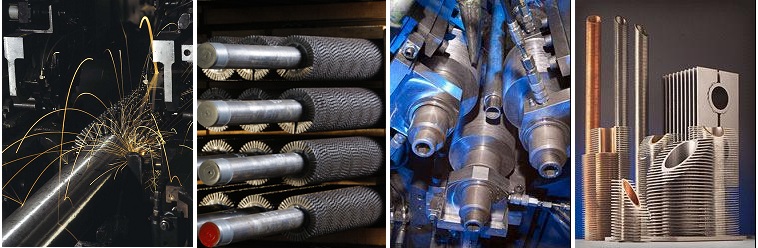

Jiangsu Haohua Industry Group is the largest manufacturer of helical high finned tube in the China with the facility to produce in excess of 10,000 metres
of quality finned tube per week.
Our ability to draw base tube from our stock of over 1,000 tonnes allows us to react quickly to clients’ demands and to remain competitive with any other
producer worldwide. Profins’ finning facility enables numerous fin and tube material and size combinations to be manufactured. This gives us unrivalled
flexibility and allows us to react swiftly to emergency orders.
"L"FINNED TUBE
The strip material is subjected to controlled deformation under tension giving the optimum contact pressure of the foot of the fin onto the base tube thus
maximising the heat transfer properties.
The foot of the fin considerably enhances the corrosion protection of the base tube.
MAXIMUM WORKING TEMPERATURE:150°C
ATMOSPHERIC CORROSION RESISTANCE:ACCEPTABLE
MECHANICAL RESISTANCE:POOR
FIN MATERIALS:ALUMINIUM, COPPER
TUBE MATERIALS:CARBON STEEL,STAINLESS STEEL
ANY THEORETICAL LIMIT
"LL"FINNED TUBE
Manufactured in the same way as the 'L""finned tubetype except that the fin foot is overlapped to completely enclose the base tube thereby giving
excellent corrosion resistance. This type of finned tube is often used as an alternative to the more expensive extruded type fin in corrosive environments.
MAXIMUM WORKING TEMPERATURE:180°C
ATMOSPHERIC CORROSION RESISTANCE:ACCEPTABLE
MECHANICAL RESISTANCE:POOR
FIN MATERIALS:ALUMINIUM, COPPER
TUBE MATERIALS:CARBON STEEL,STAINLESS STEEL
ANY THEORETICAL LIMIT
"KL"FINNED TUBE
Manufactured exactly as the 'L""finned tube except that the base tube is knurled before application of the fin foot. After application, the fin foot is
knurled into the corresponding knurling on the base tube thereby enhancing the bond between the fin and tube, resulting in improved heat transfer
characteristics.
MAXIMUM WORKING TEMPERATURE:260°C
ATMOSPHERIC CORROSION RESISTANCE:ACCEPTABLE
MECHANICAL RESISTANCE:POOR
FIN MATERIALS:ALUMINIUM, COPPER
TUBE MATERIALS:CARBON STEEL,STAINLESS STEEL
ANY THEORETICAL LIMIT
"G"EMBEDDED FINNED TUBE
The fin strip is wound into a machined groove and securely locked into place by back filling with base tube material. This ensures that maximum heat
transfer is maintained at high tube metal temperatures.
MAXIMUM WORKING TEMPERATURE:400°C
ATMOSPHERIC CORROSION RESISTANCE:ACCEPTABLE
MECHANICAL RESISTANCE:POOR
FIN MATERIALS:ALUMINIUM, COPPER
TUBE MATERIALS:CARBON STEEL,STAINLESS STEEL
ANY THEORETICAL LIMIT
EXTRUDED FINNED TUBE
This fin type is formed from a bi-metallic tube consisting of an aluminium outer tube and an inner tube of almost any material. The fin is formed by rolling material from the outside of the exterior tube to give an integral fin with excellent heat
transferproperties and longevity. Extruded fin offers excellent corrosion protection of the base tube.
MAXIMUM WORKING TEMPERATURE:285°C
ATMOSPHERIC CORROSION RESISTANCE:ACCEPTABLE
MECHANICAL RESISTANCE:POOR
FIN MATERIALS:ALUMINIUM, COPPER
TUBE MATERIALS:CARBON STEEL,STAINLESS STEEL
ANY THEORETICAL LIMIT
