Description
Detailed Product Description
1) Quality Extruded Fin Tubes
2) Highly Competitive Rates
3) Well Experienced Team
4) Delivery Within Stipulated Time Frame
Leading Manufacturer of Extruded Aluminum Fin Tubes.
We will guarantee that you receive a high-quality product at a highly-competitive price.
Product Range
Finned Tube OD: ø25-ø88 mm
Fin Thickness: 0.25-0.45 mm
Fin pitch: to your requirement
Welded Finned tubes
Material: stainless steel, carbon steel, alloy
Bare tube size: OD16mm-OD219mm
Fins Pitch:3mm-25mm
Fins Height:9mm-25mm
Fin thickness:1-3mm
Fin material: Aluminium
Base tube material: Any metallic material
Manufacture

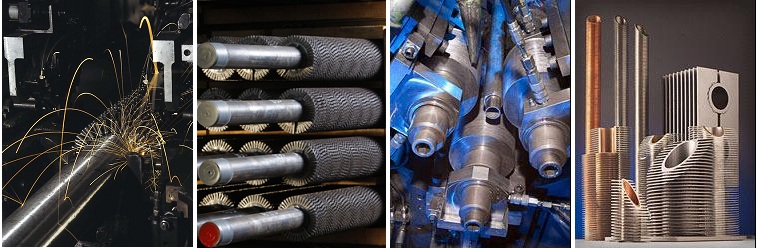

A core tube is fitted into an aluminium primary tube. This assembly is then fed into the triple-spindle finning machine.Three special multi-disc packs extrude the aluminium tube into helical high fins while reducing the inner diameter to give firm pressure contact with the core tube.
Application:
*Air cooling unit
*Product coolers - gas, chemicals, petrochemicals, oil etc.
*Heat exchangers
Aluminium Spiral Fin Tube,Stainless Fin Tube,Extruded Fin Tube,Extruded Aluminum 1070 Fin with stainless steel bare tubes
High-efficiency fins for higher temperature applications giving complete and permanent atmospheric corrosion protection of the base tube.
